Infrared Heating Panels
Smartline Infrared
Discover Heat4All SmartLine the Infrared heating panel that gives you the ultimate combination of minimalist design and maximum energy efficiency. Our SmartLine infrared heaters provide powerful, energy-efficient heating while fitting seamlessly into any room. Giving you the combination of modern design and sustainable technology
- Made in Austria
- TUV certifies
- 8 year warranty
See which panels would best suit your home
Delivery time 6-8 working days
To place an order, get advice or request a price list
High Efficiency with a Simple Structure
Our high-quality Heat4All infrared heaters have many advantages: low costs, the best heat efficiency and the highest level of the 'feel good factor' thanks to an ideal room ambience. Our infrared heaters also help reduce your ecological footprint - through their economical operation with sustainable energy, their longevity (we have run one continuously for over 40 years), the possibility of relocating the heating system at any time or expanding it as required.
Our SMARTLINE focuses primarily on offering the best possible heating quality at the lowest price. By using different materials, we can specifically reduce the price of the SmartLine without having to accept any significant compromises in terms of heating and panel quality. The panels are therefore designed for indoor use and also meet the requirements for use in bathrooms and for ceiling installation.
The mechanical stability of the SMARTLINE panels is achieved through the frame and the four suspension points. The thermal insulation between the front and back of the SMARTLINE series is achieved through a thin air cushion and an IR reflector.
The Smartline panels use a coating with high IR emissivity on the front. The back of the SMARTLINE has a lower IR emissivity due to the bare metal surface, as does the anodized metal frame. This shifts the ratio of radiant to convective heat. However, the total heat emitted into the room corresponds to the type specification.
Advantages of Infrared Heaters
- Easily expandable system at any time
- Fights and prevents damp and mould
- Almost no air and dust turbulence
- Pleasant ambient heating
- Flexible and space-saving use
- No maintenance
- Lifespan of up to 40 years
Build your own system
If you wish to try Infrared heating, why not start with just one or two panels? We feel sure that you will be happy with the results and you can then begin to 'build' your number of panels. This can either be gradually, one panel at a time as the funds become available, or by buying for the remaining rooms in your house or business. Either way, you will be saving on your heating bills from day one, particularly if you use our Smart way of heating your space. Learn more about 'How Infrared Heating Works' in our IR Knowledge Hub.
The Wattage of each infrared panel is from 175 to 1000 Watts and the panels can be controlled by Heat4All WiFi Thermostat/s or by a HomeMatic central app. The HomeMatic system can be integrated into your Nest, Hive system etc if preferred.
All infrared panels are made in Austria by Heat4All to the highest quality specifications under all EU regulations.
NEW Our Heat4All Smartline panels are now available with a Light Frame, to give an extra dimension to your heating and lighting system.

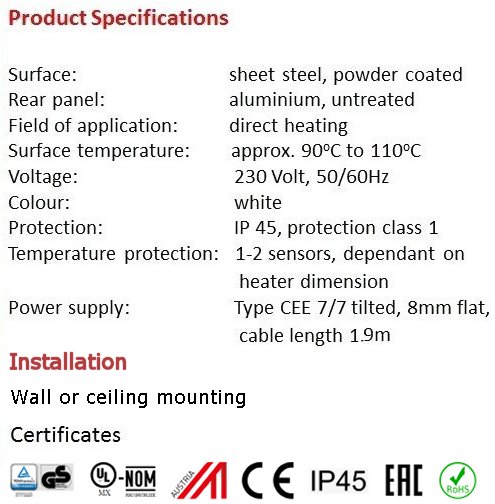

Heating Specification
If you are interested in our Heat4All Smartline panels for your home or business and would like a free, no obligation specification, simply write to us by email at moc.saggnicalperderarfni@divad or telephone on 07872 900149 or 07740 285047.
All specifications supplied assume correct measurements received and adequate property insulation.
| Panel | Dimensions | Wattage | Weight Kg | Heatable Area m2 |
|---|---|---|---|---|
| Heat4All Smartline 175 | 495 x 350 x 16 | 175 | 2.35 | 2 - 5 |
| Heat4All Smartline 320 | 595 x 595 x 16 | 320 | 4.3 | 4 - 8 |
| Heat4All Smartline 520 | 950 x 615 x 16 | 520 | 6.75 | 8 - 12 |
| Heat4All Smartline 700 | 1100 x 650 x 16 | 700 | 8.2 | 11 - 19 |
| Heat4All Smartline 1000 | 1240 x 815 x 16 | 1000 | 11.2 | 16 - 24 |
| Name | Dimensions | Nominal output | Lumen |
|---|---|---|---|
| Smartline Light Frame 175 | 536 x 391 x 20 | 175 | 2,200 |
| Smartline Light Frame 320 | 636 x 636 x 20 | 320 | 3,100 |
| Smartline Light Frame 520 | 991 x 656 x 20 | 520 | 4,000 |
| Smartline Light Frame 700 | 1141 x 691 x 20 | 700 | 4,600 |
| Smartline Light Frame 1000 | 1281 x 856 x 20 | 1000 | 5,400 |
Builders, Retrofitters or any Business
We are proposing to sell 'infrared panel kits' of whatever number of panels required, usually one for each room together with Wi Fi Thermostat/s. Therefore, on an Estate with similar properties, each property will have an 'infrared panel Kit' predetermined by the customer and delivered as a 'Kit' for each house. Each panel will be marked as to Wattage making it easy for the electrician to identify which panel goes where.
Our intention is to make the purchase, delivery and installation of the panels as simple as possible, because of the volume that will be required.
Currently there are over 1.5 million gas boilers sold every year in the UK, so for them to be replaced there will need to be at least 15 million InfraRed panels manufactured. We will try to go as far as we can in servicing that demand with our product.
Important Information
If you are a Business buying panels from Austria you will need to register for an EORI (Economic Operators Registration and Identification) number. This is the link to the Government website and this is the link to a downloadable document of that page.
Sustainability
Infrared Heating panels have long lasting sustainability. Heat4All has trialled their Infrared panels for a total of 41 years and the panels are still operating without hindrance of operation. It follows that after installation that they will continue working and can be forgotten about for almost a lifetime.
Brochure
We now have our new UK InfraRed Heating Manual, produced in association with Heat4All, where you will find plenty of information about the product and interesting facts on how InfraRed works.
